Sursa Aqirys Pulsar 750W 80+ White certified, culoare neagra
TECHNICAL DATA
- Continuous power: 750W
- Form factor: Intel® ATX12V 2.31

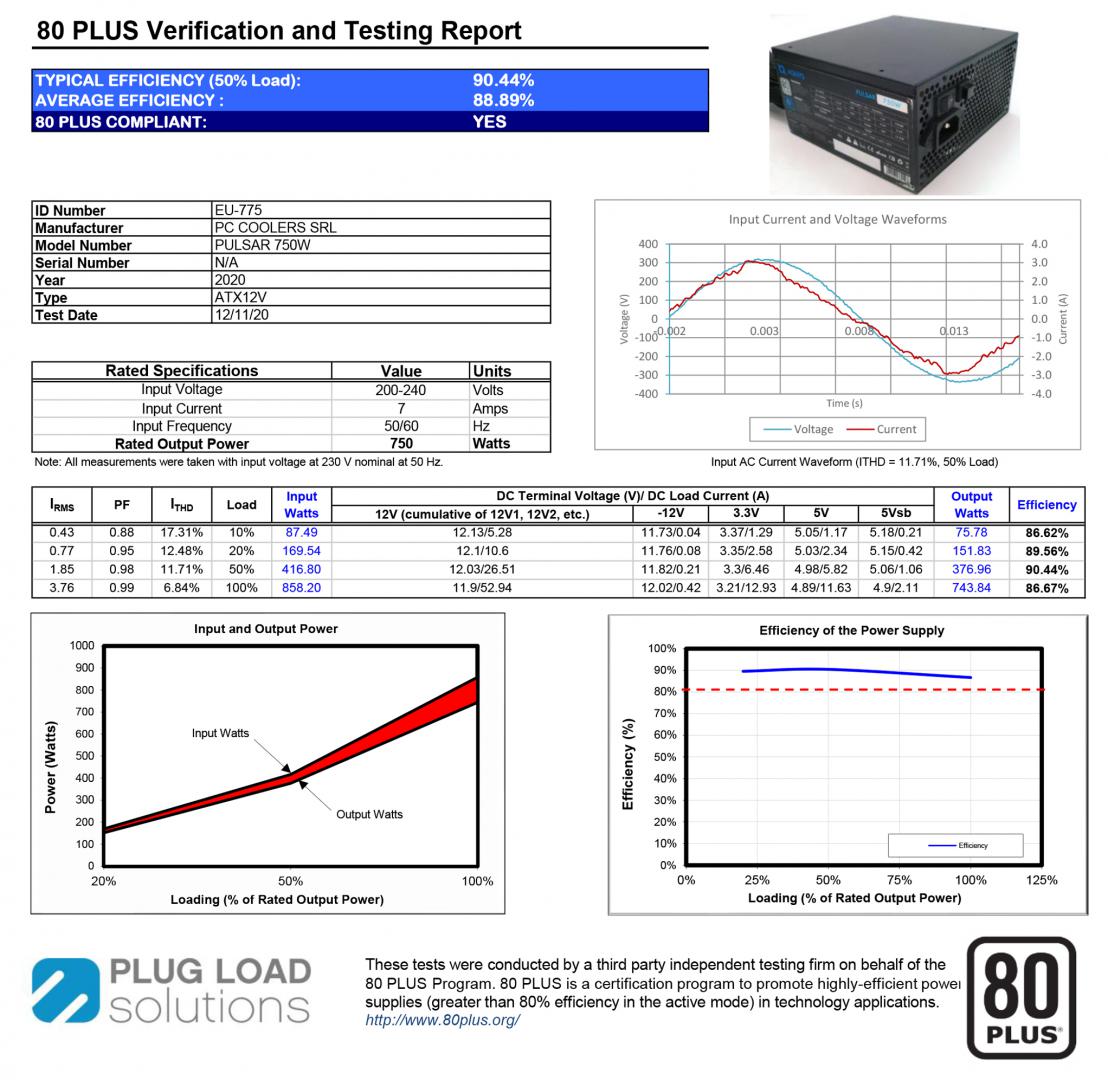

- Efficiency: 80PLUS® Bronze certified
- Intel® C6/C7: Yes
- PFC: Active
- Illumination: Yes (ARGB)
- Modular cables: No
- Cable type: Flat, black

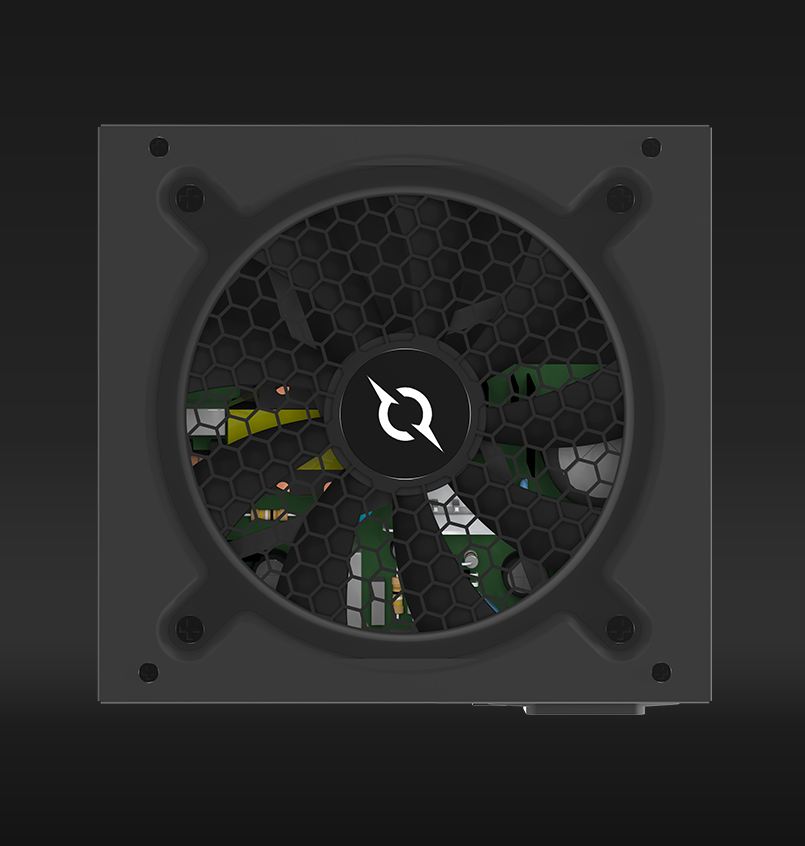

- Fan size: 120 mm
- Fan speed: Temperature controlled
- Fan technology: Fluid Dynamic Bearing
- AC Input: 200 – 240V, 4A, 50/60Hz
- DC Output +3.3V: 22A
- DC Output +5V: 20A
- DC Output +12V1: 62.5A
- DC Output -12V: 0.5A
- DC Output +5Vsb: 2.5A
- MB connector: 1x 20+4P
- CPU connector: 1x 8P, 1x 4+4P
- PCIe connector: 2x 6+2P
- SATA connector: 6x
- Molex connector: 3x 4P
- ARGB connector: 2x
- Protections: OVP, OCP, OPP, SCP, UVP
- Environmental compliance: RoHS, WEEE, ErP Lot 6
- Dimensions (LxWxH): 140 x 150 x 87 mm
- Weight: 1654 g
- Color: Black
- EAN: 5949161380529
| Standard | 80Plus |
|---|---|
| Connectivity | Yes |
| PFC | Active |
| PSU Power | 751W – 1000W |
| PSU Type | ATX |
| RGB | Da |
| Number of fans | 1 fan(s) |
| 80 PLUS certification | 80 PLUS Bronze |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| AC input frequency | 50 – 60 Hz |
| Fan diameter | 12 cm |
| Power Factor Correction (PFC) type | Active |
| Power supply unit (PSU) form factor | ATX |
| AC input voltage | 200 – 240 V |
| Sustainability certificates | ErP |
| Max output current (+5V) | 20 A |
| CPU power connector (4+4 pin) | Yes |
| Purpose | PC |
| Total power | 750 W |
| Width | 150 mm |
| Motherboard power connector | 20+4 pin ATX |
| PCI Express power connectors (6+2 pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Depth | 140 mm |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Number of SATA power connectors | 6 |
| ATX version | 2.31 |
| Fan location | Top |
| Max output current (-12V) | 0.5 A |
| Supported motherboard form factors | ATX |
| Max output current (+3.3V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Bearing technology | FDB |
| Max output current (+12V1) | 62.5 A |
| Weight | 1.65 kg |
| Height | 87 mm |
| Warranty period | 6 year(s) |
| CPU P4 connector (4-pin) | 1 |
| Compliance certificates | RoHS, WEEE |
| Input current | 4 A |
| Producator | AQIRYS |
| Garantie | 72 |
