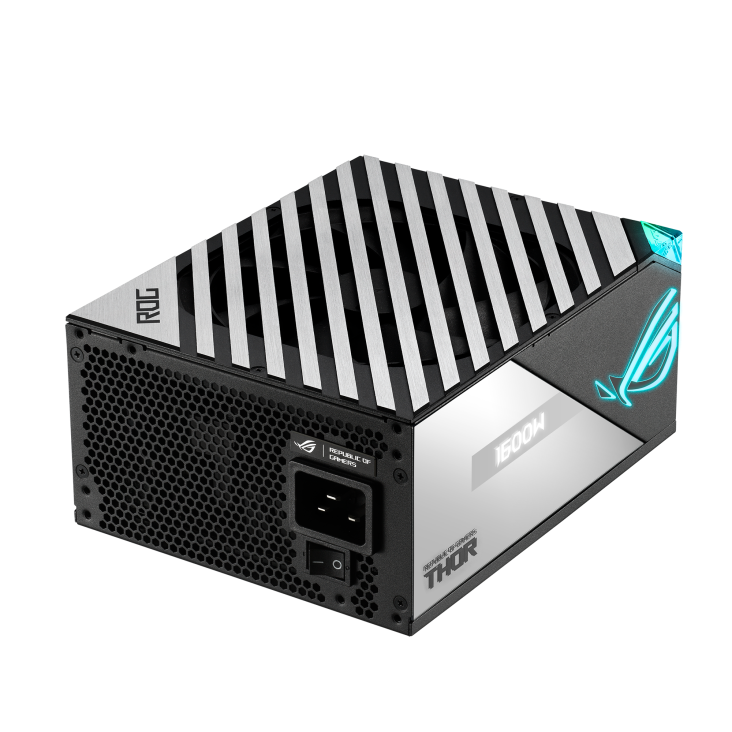

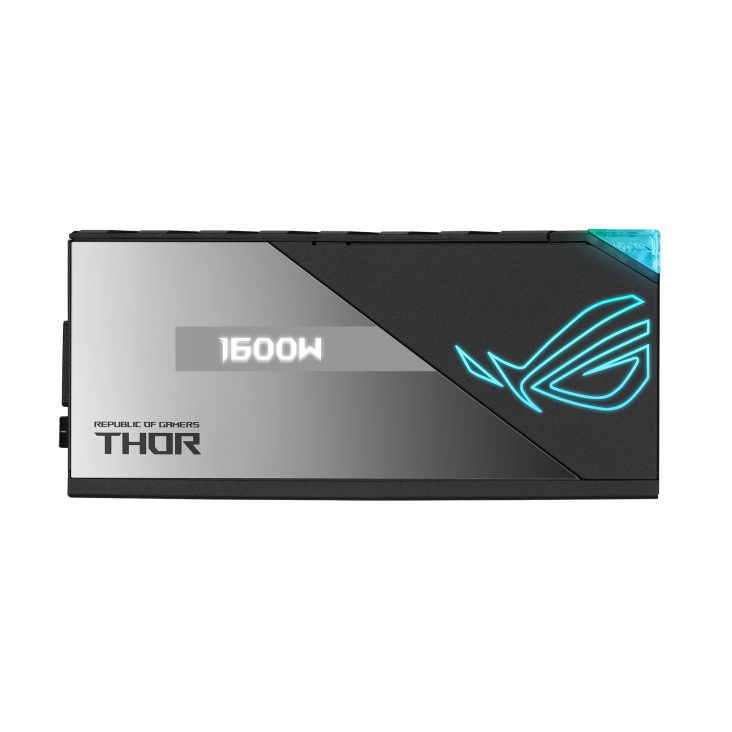

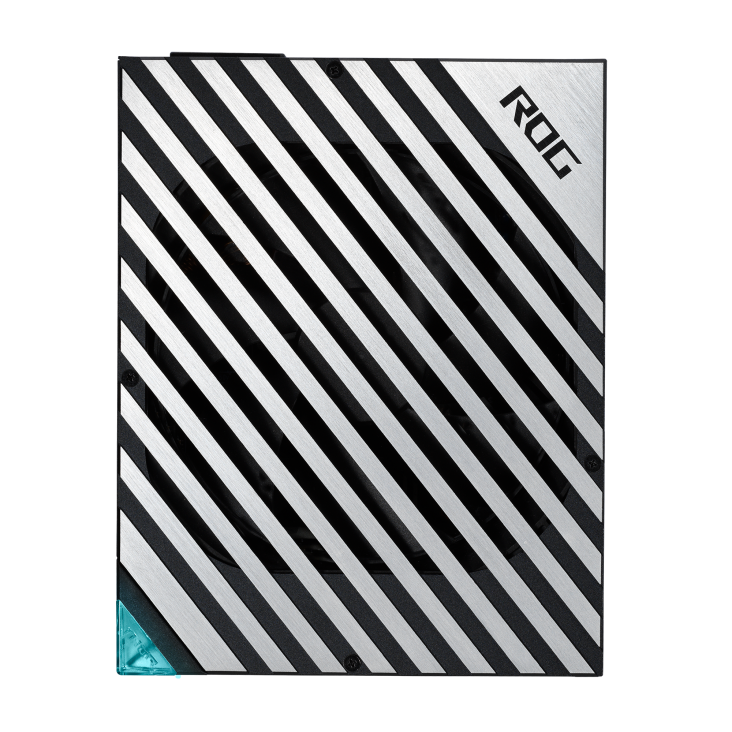

Sursa ASUS ROG THOR 1600W 80+Titanium Dimensions 190 x 150 x 86 mm Efficiency 80Plus Titanium Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac Thermal Features ROG Thermal Solution DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 20A 20A 133.3A 0.3A 3A Combined Load 100W 100W 1600W 3.6W 15W Total Output 1600W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 10 SATA x 12 PERIPHERAL x 6
| Connectivity | Yes |
|---|---|
| PFC | Active |
| PSU Power | 751W – 1000W |
| PSU Type | ATX |
| RGB | Da |
| Standard | 80Plus-Titanium |
| AC input voltage | 100 – 240 V |
| Cabling type | Fully-Modular |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black, Silver |
| Harmonized System (HS) code | 84733020 |
| On/off switch | Yes |
| Depth | 150 mm |
| Width | 190 mm |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| CPU power connector (4+4 pin) | Yes |
| Purpose | PC |
| Combined power (+5Vsb) | 15 W |
| Max output current (+5Vsb) | 3 A |
| Number of SATA power connectors | 12 |
| Cable tie(s) included | Yes |
| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (20+4 pin) | Yes |
| Fan diameter | 13.5 cm |

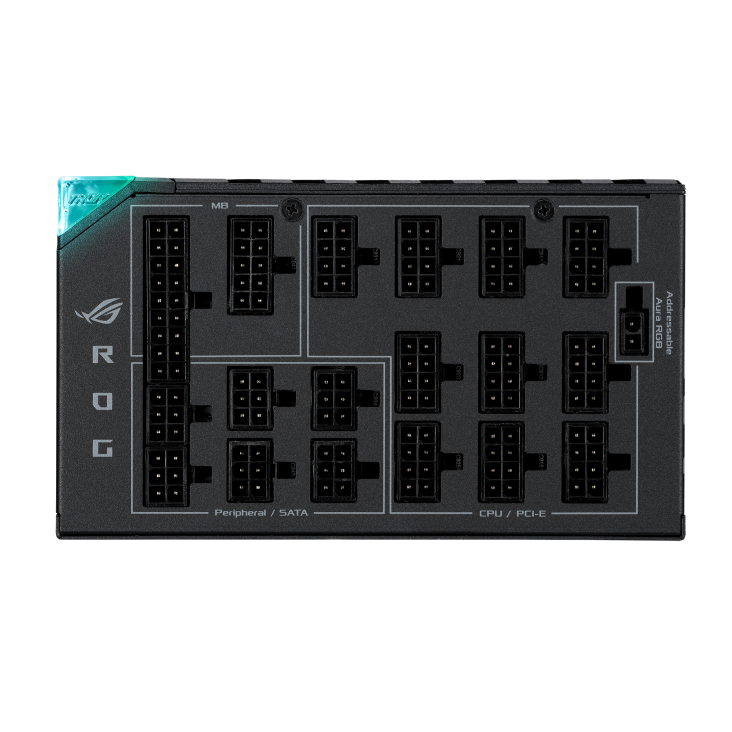

| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| CPU P4 connector (4-pin) | 2 |
| Weight | 2.69 kg |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Total power | 1600 W |
| Combined power (-12V) | 1600 W |
| Max output current (-12V) | 133.3 A |
| Power protection features | Over power, Overcharge, Overheating, Overload, Short circuit, Under voltage |
| PCI Express power connectors (6+2 pin) | 10 |
| 80 PLUS certification | 80 PLUS Titanium |
| Compliance certificates | CE, Low Voltage Directive (LVD), RoHS |
| Package weight | 2.71 kg |
| Height | 86 mm |
| Producator | ASUS |
| Garantie | 120 |
